Jura ENA 8 Frother Draws Air, Not Milk: The Blockage Points Beyond the Nozzle

Quick Answer: When a Jura ENA 8 frother draws air instead of milk, first reseat the milk pipe connector and dismantle and rinse the dual spout. Confirm that the small air intake pipe is present, then reassemble the numbered parts in order and press the assembly firmly into place. If the HP1 pipe or CX1 spout is more than three months old, replace it. Jura lists both on an approximate three-month replacement interval and requires daily milk-system cleaning on days you prepare milk. If a new pipe and a correctly assembled, clean spout still pull only air, the fault may be internal. This page is ENA 8-specific. The general milk frother guide covers every model.

What “Sucking Air” Tells You

“Draws air instead of milk” is a different symptom from thin foam or no foam. The pump runs, the frother hisses or gurgles, but milk does not rise up the pipe, or it rises and then drops back. That means one of two things: air is entering the milk path somewhere between the container and the frother, or the path is blocked and the pump can only pull air past the blockage.

That is why cleaning the nozzle does not fix it. The nozzle is the last inch of the path. The air is getting in earlier.

Jura’s ENA 8 troubleshooting table has one entry for the milk system: if insufficient foam is produced or milk sprays from the dual spout, the spout is dirty, so clean the milk system and then dismantle and rinse the dual spout. That is the right first step, and most owners reading this have done it. The rest of this page covers what the table does not say.

Which Milk System Does the ENA 8 Have?

Settle this before you buy any part. Jura’s ENA 8 manual lists the milk system as HP1 with connector and the interchangeable milk spout as CX1. Jura’s marketing calls the result fine foam technology, and the foam is very good, but the hardware generation is not the HP3 system on the E8 and S8. Parts sold for the HP3 machines are not automatically ENA 8 parts. Check that a listing names the ENA 8, HP1, or CX1.

The cleaning products are shared. Jura’s milk system cleaner is the one consumable that works across every generation, and the ENA 8 manual says to use only the original cleaner because other agents do not remove milk residue properly and can leave the frother blocked.

The Five ENA 8 Blockage Points Owners Miss

In the order that finds the fault fastest.

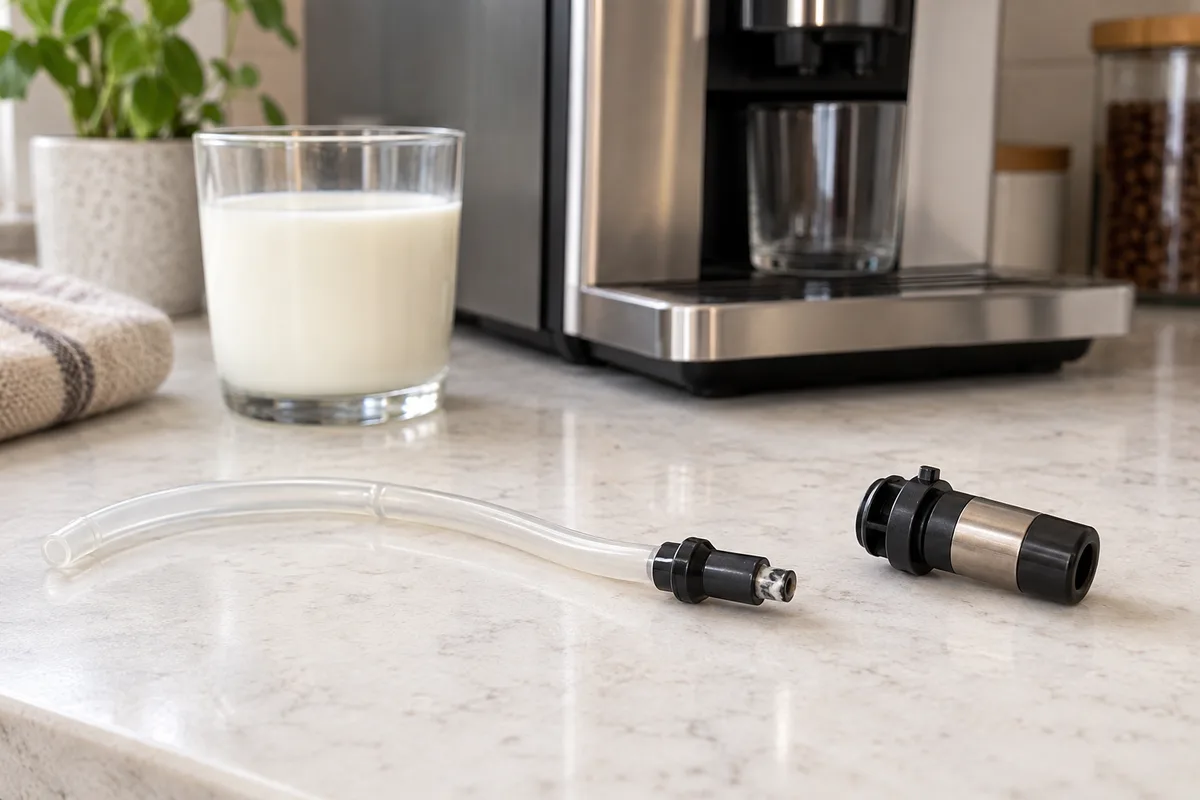

Illustrative close-up: inspect the tube for hardening or cracks and the connector for dried milk. Use the numbered HP1/CX1 assembly diagram in your ENA 8 manual when dismantling the actual spout.

1. The pipe connector is not seated in the dual spout

The ENA 8 milk pipe has a connector on the spout end. Jura’s cleaning instructions note that the pipe must be fitted with its connector to seal against the container, and the same is true at the spout. A connector that is pushed most of the way in looks fine and leaks air at the joint. Pull the pipe off, wipe the connector and the socket, and push it back until it stops. Then tug it. If it moves, it was not seated.

Dried milk on the connector face is the most common reason it will not seat. A ten-minute soak in warm water with a little milk system cleaner clears it.

2. The air intake pipe is missing or misfitted

This is the one that catches owners after a cleaning session. When you dismantle the ENA 8 milk system into its parts, there is a small air intake pipe among them. Jura’s reassembly steps are explicit: fit the air intake pipe, then reassemble the milk system in the numbered order of the parts. If the intake pipe is left out, fitted the wrong way, or clogged with dried milk, the frother cannot regulate air and pulls air where it should pull milk.

Take the milk system out again, lay the parts out in numbered order, and check the intake pipe for residue. Blow through it. If you cannot, soak it and try a soft brush.

3. The parts went back in the wrong order

The parts are numbered for a reason. A milk system reassembled out of sequence can still snap into the spout and still look assembled, but the seals no longer sit where they should and air enters between the pieces. If the problem started right after a cleaning, this is the first suspect. Dismantle, confirm the numbering, reassemble, and press the assembly firmly back into the dual spout before you refit the cover. A milk system that is not pressed fully home leaks at the spout end.

4. The milk pipe has hardened

Jura’s maintenance table for the ENA 8 lists the milk pipe with connector as a part to change about every three months. The tube can stiffen or crack with age and repeated use. A hardened pipe grips the connector less tightly, and a hairline crack near the bend draws air with every pump stroke. Hold the pipe to a light and flex it. Stiffness, cloudiness, or a crease near either end means it is past its interval. Replace it rather than trimming it. A shorter pipe may not reach the bottom of a full milk container.

5. The CX1 spout is worn

The interchangeable milk spout is on the same three-month interval in Jura’s table. Its channels narrow with use and its molded seals flatten. When a new pipe, a clean and correctly assembled milk system, and cold milk still produce air, the spout itself is the last external part left. A spout that has been on the machine for a year or more of daily milk drinks is due.

Two Things That Look Like a Blockage and Are Not

Warm milk. Jura’s ENA 8 manual says the most important requirement for frothing is milk at 4-8 °C (39-46 °F), and recommends a milk cooler or an insulated container. Milk that has sat on the counter froths badly and can look like the frother is failing. Test with milk straight from the fridge before you take anything apart. Our Cool Control guide covers how long milk stays cold enough in each container type.

Milk level. The pipe must reach the bottom of the container. With a low milk level or a pipe that has curled up, the pipe end sits above the milk and the frother pulls air. Refill and reposition, then retest. A container with a fitted lid and tube port removes this variable. The milk container guide compares the options.

The ENA 8 Cleaning Sequence Jura Specifies

Jura’s published routine for the ENA 8 has three layers. Most “air not milk” failures start when the daily layer is skipped for a few weeks.

After milk drinks: the ENA 8 rinses the milk system automatically 15 minutes after milk preparation, so keep a receptacle under the dual spout. You can set this rinse to manual or automatic in the machine settings. Leave it on automatic.

Daily, on milk days: touch the maintenance symbol and start “Clean the milk system”. Remove the pipe from the milk container, add one dosing unit of cleaner to the front part of the supplied cleaning container, fill with warm water to the upper mark, place it under the dual spout, and connect the pipe. The machine runs the cleaner through, pauses for a fresh-water rinse, and stops on its own. Jura says the process takes about two minutes.

When milk has already stopped: dismantle the dual spout. Remove the milk pipe and rinse it. Pull the cover of the dual spout forwards and off. Lift the milk system out, separate it into its parts, and rinse them under running water. For dried-on residue, soak the parts in 8.5 oz (250 ml) of water with one dosing unit of cleaner first. Fit the air intake pipe, reassemble in numbered order, press the assembly firmly into the spout, and refit the cover. Then run the daily cleaning program twice.

Which Parts Fit the ENA 8?

Three parts cover almost every ENA 8 milk repair an owner can do without opening the case. All three are on Jura’s own replacement schedule or in its cleaning instructions.

• Milk system cleaner. The consumable. Keep the mini-tabs with the dosing dispenser stocked.
• Milk pipe with connector, HP1. Jura’s interval is about three months. Buy the version listed for the ENA 8 or HP1. The HP3 stainless-cased pipe sold for the E8 and S8 is a different generation.
• Frother housing 70099. The outer housing that the milk system sits in. Jura lists it for the ENA 8 and the ENA Micro 8, 9, and 90. Replace it when it is cracked, or when its molded seals no longer hold the milk system firmly in the spout.

For the seal-level fix on a spout that sputters after cleaning, the O-ring replacement walkthrough applies to the ENA 8’s milk system parts as well.

When Does an ENA 8 Air Problem Become a Service Job?

One test decides it. Fit a new milk pipe, dismantle and soak the milk system, reassemble it in numbered order with the air intake pipe fitted, press it firmly into the spout, use milk straight from the fridge with the pipe at the bottom of the container, and run the cleaning program twice. If the frother still pulls only air, you have ruled out the normal owner-serviceable causes before paying for a repair.

At that point the fault is inside: the valve or drive that moves the milk system between its positions, or a blockage in the internal milk path that the cleaning program cannot reach. That needs a technician. Jura factory service charges a flat fee that covers a full service of the machine, and independent US shops charge less for a milk-path repair alone. On an ENA 8 that is otherwise healthy, the repair is worth it. The repair vs replace guide has the cost table by fault type.

Does Oat Milk Cause This on the ENA 8?

It can. Plant milk residue can collect in the milk system’s narrow channels and in the air intake pipe, and the ENA 8 has no non-dairy cleaning mode. If your household uses oat milk, run the daily clean without exception and inspect the dismantled spout regularly rather than waiting for milk flow to stop. The oat milk in a Jura guide covers suitable barista formulations and cleaning considerations.

Frequently Asked Questions

Why does my Jura ENA 8 frother suck air instead of milk?

The pump is pulling air through a leak or a blockage upstream of the frother. On the ENA 8 the usual places are the milk pipe connector not seated in the dual spout, the small air intake pipe missing or misfitted inside the dismantled milk system, parts reassembled in the wrong order, a hardened or cracked milk pipe, and a worn CX1 interchangeable spout. Jura’s maintenance table lists the milk pipe with connector and the CX1 spout as parts to change about every three months.

How do I take apart the ENA 8 milk spout to clean it?

Remove the milk pipe, pull the cover of the dual spout forwards and off, lift the milk system out of the dual spout, and separate it into its individual parts. Rinse each part under running water. For dried-on residue, soak the parts in 8.5 oz (250 ml) of water with one dosing unit of milk system cleaner first. Fit the air intake pipe, reassemble in the numbered order, press the assembly firmly back into the spout, and refit the cover.

Which milk system does the Jura ENA 8 have?

Jura’s ENA 8 manual lists the milk system as HP1 with connector and the interchangeable milk spout as CX1. That is a different generation from the HP3 system on the E8 and S8. Check that any replacement pipe or spout is listed for the ENA 8, HP1, or CX1 before you buy it.

How often should I replace the ENA 8 milk pipe?

Jura’s maintenance table for the ENA 8 says to change the milk pipe with connector about every three months, and to change the CX1 interchangeable milk spout on the same interval. A pipe older than that has usually hardened enough to draw air at the connector even when it looks fine.

When is an ENA 8 milk problem an internal fault?

When a new pipe, a clean and correctly assembled milk system, cold milk, and a firmly seated spout still produce nothing but air. At that point the fault is inside the case and needs a technician. Everything outside the case costs under $40 to rule out first.
